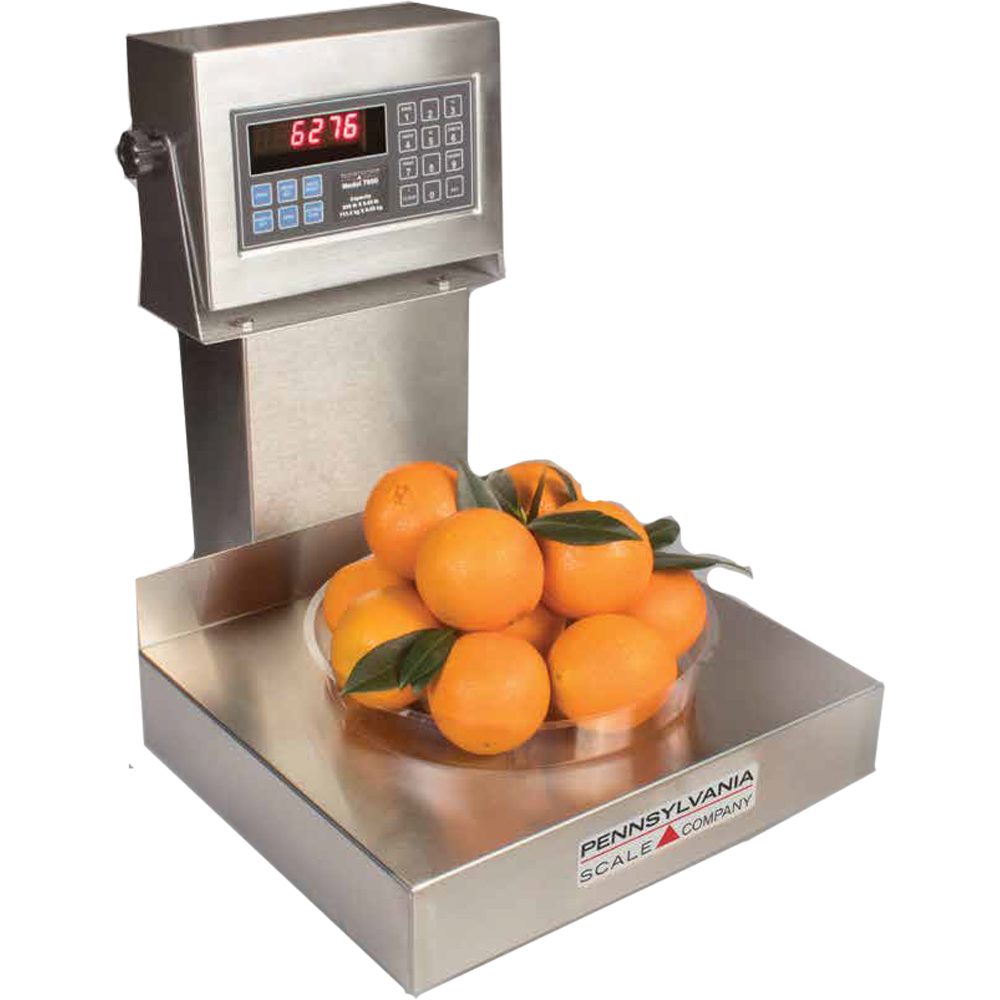

Pennsylvania Scale 6200 Legal for Trade Checkweigher & Bench-Scale Scales

Legal For Trade Canada Measurement View Specifications Chart

Pennsylvania Scale 6200 Legal for Trade Checkweigher & Bench-Scale Scales Select --- With 7400+ Indicator --- 10 x 0.002 lb $775.00 25 x 0.005 lb $775.00 50 x 0.01 lb $775.00 100 x 0.02 lb $775.00 --- With 7500+ Indicator --- 10 x 0.002 lb $775.00 25 x 0.005 lb $775.00 50 x 0.01 lb $775.00 100 x 0.02 lb $775.00 --- With 7600+ Indicator --- 10 x 0.002 lb $775.00 25 x 0.005 lb $775.00 50 x 0.01 lb $775.00 100 x 0.02 lb $775.00

• Stainless steel construction – open architecture for easy cleaning
• IP66 Environmentally Sealed Aluminum load cell for quick display response and excellent performance in a wide range of applications and environments
• Large 12 x 14" platform w/ 2" lip at rear, sanitary design
• Standard RS-232 Data output to a wide range of printers and systems
• High resolution Parts Counting (7500+, 7600+)
• Uses proven PLUS+ Series electronics for maximum interchangeability and easy service
• Choose Lbs and Kgs or any (2) weight units including Lbs/Ozs split display
• Easy to use – Easy to set up – Easy to service
• Complete package INCLUDES Digital Indicator of choice
• SIMPLE TO USE and easy to service—uses proven universal PLUS+ Main Board
• Convenient for bench filling and weighing of large or bulky items PLUS superior resolution for parts counting BOTH sanitary and industrial applications
• Two-Year Limited Warranty

Applications
• Packing, Filling, CheckWeighing, Parts Counting, Quality Control, Ingredient Weighing
• Suitable for all but the most abusive wet or harsh environments
• Ideal for Food or Industrial Factory environments

Platform Size
• 12 x 14" Sanitary Stainless Steel (all models) 2" rear Lip

Indicator Features (vary by model):
• Bi-directional programmable RS-232 data output – flexible and powerful
• Time and Date with battery back-up
• Network Addressable
• Wide range of printers and data interface devices plus optional Setpoint & Analog outputs

Load Cell
• IP66 rated Environmentally Sealed
• Crisper display response and beter accuracy than stainless steel with similar environmental protection
• Ideal for parts counting and dual or triple ranging display resolution applications

Physical Dimensions
• 14" x 17 d" x 18.5" high overall
• Platform: 12" x 14" with 2" lip at rear
• Weight: Approx. 38 lbs – Ships fully assembled

Options
• Choice of Indicator—7400+, 7500+, 7600+, 7600E, or 7700+
• Optional Analog Output (7400+: 0-10 vDC or 0-20 mA)
• Optional Setpoint (4) programmable (7400+ and 7600E only)
• Time, Date, Accumulator

Power
• 110 VAC or optional 220 VAC +/- 15%; 50/60 Hz; 30 Watts
• Optional AC/DC operation – Contact Us

Warranty
The parts and components of these Pennsylvania Scale Company products are warranted for two years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard Warranty.

7400+ indicator The 7400+ indicator provides a clean design and dual independent RS-232 interfaces ideal for process control applications 7500+ indicator The 7500+ indicator features a high-resolution display, singlebutton operation, and Automatic Sample Update™ for more productive weighing and counting 7600+ indicator The 7600+ indicator offers expanded features, including: full numeric keyboard, choice of 7600+ or 7600E display, PLUS+ set point, memory, analog output, and dual base capabilities

Indicator Model 7400 7500+ 7600+ One button counting w/Sample Update YES YES %-Accuracy/%-Error display YES (2) Weighing units YES YES YES Input and display of Average Part Weight, Tare Weight, 14-digit numeric I.D., Time/Date YES Dual Base Option sample-to-bulk counting (requires optional DB 2nd base input) YES Ethernet option YES YES YES Solid State Relay Option for batching YES YES Bidirectional programmable outputs 2 1 1 Time/Date with battery back-up YES YES Sequential Batching (Count/Weigh) W C/W Remote Display default setting YES YES YES Panel Mount Option YES YES YES DC power Option, 30 hours/charge Integrated, HD power cord, functions like a U.P.S. back-up power supply YES YES YES

7400+ Indicator

Model	6274-10	6274-25	6274-50	6274-100
Price	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart
Capacity x Readability	10 x 0.002 lb 4.536 x 0.001 kg	25 x 0.005 lb 9.072 x 0.002 kg	50 x 0.01 lb 22.68 x 0.005 kg	100 x 0.02 lb 45.36 x 0.01 kg
Pan Size	12 x 14 in
Finish	Stainless Steel
Indicator	7400+
	The 7400+ indicator provides a clean design and dual independent RS-232 interfaces ideal for process control applications
Legal For Trade	NTEP Canadian Weights & Measures
Optional analog output	0-10 vDC or 0-20 mA
Optional setpoint	(4) programmable
Outputs	RS-232, RS-485, RS-422 and current loop,
Display	Red high intensity LED display 0.6" high, (6) digits w/ annunciators
Power	117/217 VAC, 50/60 Hz, 20 watts, fuse 0.25 A slow blow
Warranty	2 Year Limited
	Made in USA

7500+ and 7600+ Indicator

Model	6275-10	6275-25	6275-50	6275-100	6276-10	6276-25	6276-50	6276-100
Price	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart	$775.00 Add to Cart
Capacity x Readability	10 x 0.002 lb 4536 x 1 g	25 x 0.005 lb 9.072 x 0.002 kg	50 x 0.01 lb 22.68 x 0.005 kg	100 x 0.02 lb 45.36 x 0.01 kg	10 x 0.002 lb 4536 x 1 g	25 x 0.005 lb 9.072 x 0.002 kg	50 x 0.01 lb 22.68 x 0.005 kg	100 x 0.02 lb 45.36 x 0.01 kg
Pan Size	12 x 14 in
Finish	Stainless Steel
Indicator	7500+				7600+
	The 7500+ indicator features a high-resolution display, singlebutton operation, and Automatic Sample Update™ for more productive weighing and counting				The 7600+ indicator offers expanded features, including: full numeric keyboard, choice of 7600+ display, PLUS+ set point, memory, analog output,and dual base capabilities
Legal For Trade	NTEP: 97-009A31 to 10,000 divisions Canadian Weights & Measures AM-5647 4869, Rev. 3
Outputs	RS-232
Display	Red 0.56" high intensity LED
Warranty	2 Year Limited
	Made in USA
Indicators info	System Data Communications: Programmable addressable RS-232 Option ETHERNET Option Analog Output 0-10 VDC or 4-20 mA jumper selected Option Solid State Relays (AC or specify DC) for batching (7600) Option REMOTE DISPLAY with or without button functions,menu selected as Master or Slave via RS-232 Option UPS Worldship, FedEx, and other emulated strings,option setting Programmable data string, option setting Label printing, option settings for Eltron/Zebra label printers Time/Date (7600) optional 7500 Fast, Easy Counting and Weighing – Technician-Friendly Design SS enclosure and U-bracket mount Technician’s dream indicator, fast set-up Fully compatible with existing load cell platforms and systems One button counting Automatic Sample Update™ for superb results Powerful 16-bit microprocessor for speed and accuracy Audit Trail accountability feature/front panel access Off-the-shelf flexibility for a wide range of applications Count or weight setpoints for sequential batching (7600) Ethernet, Analog 1-10 VDC/4-20 mA, relay output options
