Unmatched pH Performance for Safe Results - SevenExcellence™ is the perfect choice for applications where maximum measurement accuracy is required. The multi-channel instrument allows measurements of 1, 2 or 3 parameters simultaneously, either in the same or in different samples.
Professionally executed installation and qualification as well as regularly performed maintenance and calibration ensure error- and carefree instrument operation. Moreover, our qualification and calibration services support you in fulfilling regulatory compliance and provide you with essential documentation required during quality audits.
Simple Operation — Intuitive and Clear
The operation of SevenExcellence™ is so intuitive that it can be immediately deployed without requiring long periods of user familiarization. Starting an analysis, changing the settings and accessing the results is easily achieved thanks to the cleverly-devised touch screen menu operation.
The large clear color display and the state-of-the-art touch screen operation make working with this instrument particularly enjoyable. The instrument’s operation has been designed to support your workflow in the lab. The instrument speaks your language, making the selection of the right menu settings intuitive.
|
|
- Intuitive touch screen operation - The capacitive touch screen with clear buttons and an intuitive menu structure makes the instru ment's operation fast and easy. The menus exist in 10 languages and do not contain a single cryp tic expression!
- Direct measurements, tried and trusted - This instrument encompasses a second possibility to start a mea surement or calibration by press ing READ or CAL. Although more flexible, performing direct measurements in a row with varying parameters requires a change of settings before each sample.
- Modularity and Flexibility - SevenExcellence™ fits three modules in any composition and order. It offers the highest possible flexibility as you can expand the instrument at any time, adding new measurement parameters. It allows for measurements of 1, 2 or 3 parameters simultaneously, either in the same or different samples.
- OneClick™ methods, quick and revolutionary - By a single click on a shortcut you can start a method: a se quence of analysis steps with fixed preset parameters. Using methods makes sure that your particular analysis is always per formed with identical settings.
- All parameters or the essentials - The instrument gives you the choice! By a single keypress you can switch between two different views with varying degrees of in formation. In the uFocus™ view, you will not be distracted by infor mation that is of less importance.
- Professional user management - SevenExcellence™ has an ingenious user management with four levels from operator to administrator, each with progressively more rights. This allows the assignment of rights to a user that match his experience and authorization level. The risk of unintentional or unauthorized changes of settings and deletion of results is eliminated!
- Intelligent Sensor Managemen - ISM® sensors are automatically identified by the instrument, preventing the use of the wrong sensor ID by mistake. Furthermore, calibration data is stored on the sensor and upon connection it is automatically transferred to the instrument for further use.
- Radio controlled clock, no doubt about date and time - When enabling the radio-controlled-clock you have absolute certainty that the displayed date and time is correct. When the radioclock is used the result in the memory and printout is marked accordingly. In case the signal strength deteriorates the instrument then notifies you.
- Connectivity and peripheral options - SevenExcellence™ has USB, Ethernet, RS232 and Mini-DIN interfaces, allowing the connection of a barcode reader, uMix stirrer, Rondolino sample changer, USB stick, network and METTLER TOLEDO printers and a PC with LabX® direct software.
Flexibility in all Respect
SevenExcellence™ offers flexibility on all levels, ranging from the number of measurement parameters to the choice of a vast collection of peripheral devices. The instrument's interfaces allow you to connect peripherals simultaneously, supporting your workflow in the best possible way.
SevenExcellence™ fits three modules in any composition and order. It offers the highest possible flexibility as you can expand the instrument at any time, adding new measurement parameters.
Solid Compliance — Elaborated and Tailored
This instrument has been designed to help you meet the most stringent compliance requirements. SevenExcellence™ offers the ideal combination of innovative properties integrated within the instrument, appropriate documentation and services.
Efficient Workflow Support
SevenExcellence™ has been designed with the objective of optimizing the workflow and making work in the laboratory more efficient. Just one click is needed to start a sample or a series of measurements or an analysis series with an optional autosampler. Once setup, data archiving is a standard procedure that will take place automatically following each analysis.
SevenExcellence™ comes with uPlace™: The electrode arm with perfectly vertical movement can be operated using one hand only. This allows for faster measurements and reduces the risk of the sample vessel tipping over or damaging the sensor.
|

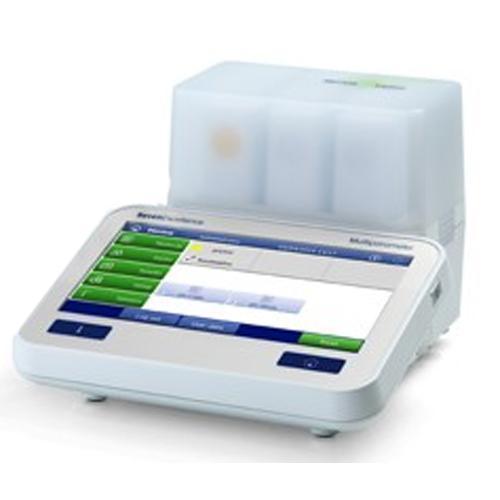

Mettler Toledo S400 SevenExcellence™ pH/mV
S400 SevenExcellence™ pH/mV
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets.
- S400-Basic SevenExcellence™ pH/mV (Instrument with a pH/mV expansion unit and 2 blank expansion units)
- S400-Kit Kit version (as S400-Basic, including InLab® Expert Pro-ISM, guide to pH-measurement and calibration sachets)
- S400-Bio Biotechnology kit version (as S400-Basic, including InLab® Routine Pro-ISM cable kit, guide to pH-measurement and calibration sachets)
- S400-Micro Life science kit version (as S400-Basic, including InLab® Ultra-Micro, guide to pH measurement and calibration sachets)
- S400-uMix Reproducibility kit version (as S400-Kit, including uMix™ magnetic stirrer)
| Model |
S400-Basic
30046240 |
S400-Kit
30046241 |
S400-Bio
30046242 |
S400-Micro
30092982 |
S400-uMix
30092983 |
| Price |
$2,266.00
|
$2,543.20
|
$2,666.40
|
$2,736.80
|
$2,666.40
|
|
SevenExcellence™ pH/mV (Instrument with a pH/mV expansion unit and 2 blank expansion units) |
Kit version (as S400-Basic, including InLab® Expert Pro-ISM, guide to pH-measurement and calibration sachets) |
Biotechnology kit version (as S400-Basic, including InLab® Routine Pro-ISM cable kit, guide to pH-measurement and calibration sachets) |
Life science kit version (as S400-Basic, including InLab® Ultra-Micro, guide to pH measurement and calibration sachets) |
Reproducibility kit version (as S400-Kit, including uMix™ magnetic stirrer) |
| Electrode Supplied |
- |
InLab Expert Pro-ISM |
InLab Routine Pro-ISM |
InLab Ultra Micro ISM |
InLab Expert Pro-ISM |
| Short description |
Professional modular instrument for pH, mV/ORP and rel. mV measurements |
| pH-range |
-2.000 to 20.000 |
| pH-resolution |
User-definable: variable: 0.001 / 0.01 / 0.1 |
| pH-relative accuracy |
+ 0.002 |
| mV-range |
-2000.0 to 2000.0 |
| mV-resolution |
User-definable: 0.1 / 1 |
| mV-relative accuracy |
+ 0.1 |
| Temperature range °C |
0.000 to 14.000 |
| Temperature resolution °C |
variable: 0.001 / 0.01 / 0.1 |
| Temperature accuracy °C |
+/- 0.05 |
| Display |
7 inch color TFT display |
Mettler Toledo S470 SevenExcellence™ pH/Conductivity
S470 SevenExcellence™ pH/Conductivity
SevenExcellence™ pH/Conductivity meter – intuitive touchscreen operation and high measurement performance combined with a complete security package for safe results and solid compliance. This dual channel instrument is modularly expandable with additional measurement parameters at any time!
- Flexible due to various conductivity modes, units and temperature correction possibilities
- Large 7 inch color display and intuitive menu guidance in 10 languages
- Flexible method concept for high reproducibility and security
- Extra security thanks to sophisticated user management and Intelligent Sensor Management (ISM®)
- Integrated interfaces (USB, RS232 and Ethernet) for data exchange
- Comprehensive service package including IQ/OQ/PQ
- S470-Basic - SevenExcellence™ pH/Conductivity dual channel meter (Instrument with a pH/mV, a conductivity and a blank expansion unit)
- S470-Kit - Kit version (as S470-Basic, including InLab® Expert Pro-ISM, InLab® 731-ISM, guide to pH-measurement, guide to conductivity measurement and calibration sachets)
- S470-Bio - Biotechnology kit version (as S470-Basic, including InLab® Routine Pro-ISM cable kit, guide to pH-measurement and calibration sachets)
- S470-USP/EP - USP/EP kit version (as S470-Basic, including InLab® Pure Pro-ISM, BNC-RCA ISM-cable (2m), InLab® 741-ISM, guide to pH-measurement, guide to conductivity measurement and calibration sachets)
| Model |
S470-Basic
30046252 |
S470-Kit
30046253 |
S470-Bio
64091338 |
S470-USP/EP
30046254 |
| Price |
$3,053.60
|
$3,863.20
|
$4,122.80
|
$4,294.40
|
|
SevenExcellence™ pH/Conductivity dual channel meter (Instrument with a pH/mV, a conductivity and a blank expansion unit) |
Kit version (as S470-Basic, including InLab® Expert Pro-ISM, InLab® 731-ISM, guide to pH-measurement, guide to conductivity measurement and calibration sachets) |
Biotechnology kit version (as S470-Basic, including InLab® Routine Pro-ISM cable kit, guide to pH-measurement and calibration sachets) |
USP/EP kit version (as S470-Basic, including InLab® Pure Pro-ISM, BNC-RCA ISM-cable (2m), InLab® 741-ISM, guide to pH-measurement, guide to conductivity measurement and calibration sachets) |
| Electrode Supplied |
- |
InLab Expert Pro-ISM, InLab 731-ISM |
InLab Routine Pro-ISM, InLab 731-ISM |
InLab Pure Pro-ISM, InLab 741 Pro-ISM |
| Short description |
Professional modular dual-channel instrument for measuring ion concentrations, pH, mV/ORP, rel. mV, conductivity, salinity, TDS, resistivity and conductivity ash |
| Cond. resolution |
0.001 µS/cm to 2000 ms/cm, various different units, defined by user |
| Cond. accuracy |
+/- 0.5% |
| pH-range |
-2.000 to 20.000 |
| pH-resolution |
User-definable: variable: 0.001 / 0.01 / 0.1 |
| pH-relative accuracy |
+ 0.002 |
| mV-range |
-2000 to 2000 |
| mV-resolution |
variable: 0.1 / 1 |
| mV-relative accuracy |
+ 0.1 |
| Temperature range °C |
-30.0 to 130.0 |
| Temperature resolution °C |
0.1 |
| Temperature accuracy °C |
+ 0.1 |
| Display |
7 inch color TFT display |
| TDS range |
0.001 mg/L ... 1000 g/L |
| Resistivity range |
0.01 ... 100.0 MOhm*cm |
| Salinity range |
0.00 ... 80.00 psu, ppt |
| ISFET pH range |
0.000 to 14.000 |
| ISFET pH resolution |
variable: 0.001 / 0.01 / 0.1 |
| ISFET pH relative accuracy |
+ 0.05 |
| Touch Screen |
Capacitive |
Mettler Toledo S475, S479, S975 SevenExcellence™
S475 SevenExcellence™ pH/Conductivity/Ion
SevenExcellence™ pH/Conductivity/Ion meter – intuitive touchscreen operation and high measurement performance combined with a complete security package for safe results and solid compliance. This triple channel instrument is modularly expandable with additional measurement parameters at any time!
Professional, yet intuitive triple channel instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets.
- Professional calibration support, incl. automatic calibration with Rondolino sample changer
- Flexible due to various conductivity modes, units and temperature correction possibilities
- Methods for incremental ion measurements, guiding the user through the individual steps
- Large 7 inch color display and intuitive menu guidance in 10 languages
- Flexible method concept for high reproducibility and security
- Extra security thanks to sophisticated user management and Intelligent Sensor Management (ISM®)
- Integrated interfaces (USB, RS232 and Ethernet) for data exchange
- Comprehensive service package including IQ/OQ/PQ
S479 SevenExcellence pH/Conductivity/DO
SevenExcellence pH/mV, Conductivity, Dissolved Oxygen meter - providing maximum flexibility, regardless of your applicative need. This triple channel instrument allows you to measure pH/mV, rel. mV/ORP, a large variety of conductivity-based measurements (TDS, salinity, resisitivity, conductivity ash) as well as a means to determine dissolved oxygen in samples either using digital or polarographic technology.
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets.
- Professional calibration support, incl. automatic calibration with Rondolino sample changer
- Large 7 inch color display and intuitive menu guidance in 10 languages
- Flexible method concept for high reproducibility and security
- Extra security thanks to sophisticated user management and Intelligent Sensor Management (ISM®)
- Integrated interfaces (USB, RS232 and Ethernet) for data exchange
- Comprehensive service package including IQ/OQ/PQ
S975 SevenExcellence pH/Conductivity/Ion/DO
SevenExcellence pH/mV, Conductivity, Dissolved Oxygen, Ion meter - the ultimate multiparameter benchtop meter. This triple channel instrument allows you to measure pH/mV, rel. mV/ORP, a large variety of conductivity-based measurements (TDS, salinity, resisitivity, conductivity ash) to determine dissolved oxygen in samples either using digital or polarographic technology, and to measure the concentration and activity of ions in solution.
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets.
- Professional calibration support, incl. automatic calibration with Rondolino sample changer
- Large 7 inch color display and intuitive menu guidance in 10 languages
- Flexible method concept for high reproducibility and security
- Extra security thanks to sophisticated user management and Intelligent Sensor Management (ISM®)
- Integrated interfaces (USB, RS232 and Ethernet) for data exchange
- Comprehensive service package including IQ/OQ/PQ
| Model |
S475-Basic
30046255 |
S479-Kit
30092988 |
S975-uMix
30092989 |
| Price |
$3,801.60
|
$6,264.00
|
$7,190.55
|
| Short description |
Professional modular triple-channel instrument for measuring ion concentrations, pH, mV/ORP, rel. mV, conductivity, salinity, TDS, resistivity and conductivity ash |
Professional modular instrument combines pH, mV/ORP, rel. mV, conductivty, salinity, TDS, resistivity, conductivity ash, and dissolved oxygen and biochemical oxygen demand (BOD) determination. |
Professional modular triple-channel instrument for measuring ion concentrations, pH, mV/ORP, rel. mV, conductivity, salinity, TDS, resistivity and conductivity ash |
|
SevenExcellence™ pH/Conductivity/Ion triple channel meter (Instrument with a pH/mV, a conductivity and a pH/ion expansion unit) |
SevenExcellence™ pH/mV, Conductivity, Dissolved Oxygen triple channel meter (Instrument with a pH/mV, a conductivity and a DO expansion unit, as well as an InLab® ExpertPro-ISM (pH), an InLab® 731-ISM (conductivity) and an InLab® OptiOx (digital DO) sensors, pH buffers, conductivity standards, and zero-oxygen calibration tablets, and guides to pH, conductivity, and DO measurement) |
SevenExcellence™ pH/mV, Conductivity, Dissolved Oxygen, Ion ultimative multichannel meter (Instrument with a pH/Ion, a conductivity, and a DO expansion unit, as well as an InLab® Expert Pro-ISM (pH), an InLab® 731-ISM (conductivity) and an InLab® OptiOx (digital DO) sensors, pH buffers, conductivity standards, and zero-oxygen calibration tablets, as well as guides to pH, ion, conductivity, and DO measurements; also includes a uMix magnetic stirrer) |
| Electrode Supplied |
- |
InLab Expert Pro, 731 and OptiOx |
InLab Expert Pro, 731 and OptiOx |
| Cond. resolution |
0.001 µS/cm to 2000 ms/cm, various different units, defined by user |
| Cond. accuracy |
+/- 0.5% |
| pH-range |
-2.000 to 20.000 |
| pH-resolution |
variable: 0.001 / 0.01 / 0.1 |
| pH-relative accuracy |
+ 0.002 |
| mV-range |
-2000 to 2000 |
| mV-resolution |
variable: 0.1 / 1 |
| mV-relative accuracy |
+ 0.1 |
| Display |
7 inch color TFT display |
| TDS range |
0.001 mg/L ... 1000 g/L |
| Resistivity range |
0.01 ... 100.0 MOhm*cm |
| Salinity range |
0.00 ... 80.00 psu, ppt |
| Concentration range |
Ion: 0.001 … 999 999 mg/L , ppm ; 0.0001 … 100 mol/L , % ; 0.001 … 100 000 mmol/L |
- |
Ion: 0.001 … 999 999 mg/L , ppm ; 0.0001 … 100 mol/L , % ; 0.001 … 100 000 mmol/L |
| Conc. accuracy |
Ion: +/- 0.5% |
- |
Ion: +/- 0.5% |
| ISFET pH range |
0.000 to 14.000 |
- |
0.000 to 14.000 |
| ISFET pH resolution |
variable: 0.001 / 0.01 / 0.1 |
- |
variable: 0.001 / 0.01 / 0.1 |
| ISFET pH relative accuracy |
+ 0.05 |
- |
+ 0.05 |
| Temperature range °C |
- |
-30.0 to 130.0 |
| Temperature resolution °C |
- |
0.1 |
| Temperature accuracy °C |
- |
+ 0.1 |
More info on the S975 pH/Cond/DO/Ion
| Parameter |
Descriptor |
Value (RDO - digital) |
Value (pol DO - analog) |
| Dissolved oxygen |
Measuring range |
0.000...50 mg/L (ppm) |
0.000…99 mg/L (ppm) |
| - |
Display Resolution |
0.001/0.01/0.1/1 |
0.001/0.01/0.1/1 |
|
Accuracy |
+ 0.1 mg/L from 0…8 |
+ 0.5% |
|
|
+ 0.2 mg/L from 8…20 |
|
|
|
+ 10% from 20…50 |
|
|
Units |
mg/L, ppm, % |
mg/L, ppm, % |
| DO Saturation |
Measuring range |
0.0...500% |
0.0…600% |
|
Resolution |
0.1 |
0.1 |
| Pressure |
Measuring range |
500 to 1100 mbar |
500 to 1100 mbar |
|
Resolution |
1 |
1 |
|
Accuracy |
+ 0.2% |
+ 0.2% |
| General |
Calibration points |
2 |
2 |
|
Sensor input |
MiniLTW (IP67) |
BNC |
|
Pressure compensation |
automatic / manual |
automatic / manual |
|
Pressure units |
mbar, hPa, mmHg, Atm |
mbar, hPa, mmHg, Atm |
|
|
|
|
Mettler Toledo S500, S700 SevenCompact™
S500 Ion/pH/ORP/mV/oC
SevenExcellence™ pH/Ion meter – intuitive touchscreen operation and high measurement performance combined with a complete security package for safe results and solid compliance. This single channel instrument is modularly expandable with additional measurement parameters at any time!
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets.
- S500-Basic - SevenExcellence™ pH/Ion (Instrument with a pH/Ion expansion unit and 2 blank expansion units)
- S500-Kit - Kit version (as S500-Basic, including InLab® Expert Pro-ISM, guide to pH-measurement, guide to Ion measurement and calibration sachets)
- S500-Bio - Biotechnology kit version (as S500-Basic, including InLab® Routine Pro-ISM cable kit, guide to pH-measurement, guide to ion measurements and calibration sachets)
- S500-Fluoride - Fluoride kit version (as S500-Basic, including perfectION® combined fluoride sensor , guide to pH-measurement, guide to ion measurements and calibration sachets)
S700 SevenExcellence™ Conductivity
SevenExcellence™ conductivity meter – intuitive touchscreen operation and high measurement performance combined with a complete security package for safe results and compliance. This single channel instrument is modularly expandable with additional measurement parameters at any time!
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets.
- S700-Basic - SevenExcellence™ conductivity (Instrument with a conductivity expansion unit and 2 blank expansion units)
- S700-Kit - Kit version (as S700-Basic, including InLab® 731-ISM, guide to conductivity measurement and calibration sachets)
- S700-Trace - Kit version (as S700-Basic, including InLab® Trace, Flow cell, guide to conductivity measurement and calibration sachets)
| Model |
S500-Basic
30046248 |
S500-Kit
30046249 |
S500-Bio
30046250 |
S700-Basic
30046244 |
S700-Kit
30046245 |
S700-Trace
30046246 |
| Price |
$2,776.40
|
$3,168.00
|
$3,207.60
|
$2,952.40
|
$3,449.60
|
$5,028.60
|
| Short description |
Professional modular instrument for measuring ion concentrations, pH, mV/ORP and rel. mV |
Professional modular instrument for measurements of conductivity, salinity, TDS, resistivity and conductivity ash |
|
SevenExcellence™ pH/Ion (Instrument with a pH/Ion expansion unit and 2 blank expansion units) |
Kit version (as S500-Basic, including InLab® Expert Pro-ISM, guide to pH-measurement, guide to Ion measurement and calibration sachets). |
Biotechnology kit version (as S500-Basic, including InLab® Routine Pro-ISM cable kit, guide to pH-measurement, guide to ion measurements and calibration sachets) |
SevenExcellence™ conductivity (Instrument with a conductivity expansion unit and 2 blank expansion units) |
Kit version (as S700-Basic, including InLab® 731-ISM, guide to conductivity measurement and calibration sachets) |
Kit version (as S700-Basic, including InLab® Trace, Flow cell, guide to conductivity measurement and calibration sachets) |
| Electrode Supplied |
- |
InLab Expert Pro ISM |
InLab Routine Pro-ISM |
- |
InLab 731-ISM |
InLab 741-ISM |
| Concentration range |
0.001 … 999 999 mg/L , ppm ; 0.0001 … 100 mol/L , % ; 0.001 … 100 000 mmol/L |
0.001 µS/cm to 2000 ms/cm, various different units, defined by user |
| Concentration accuracy |
+/- 0.5% |
| pH-range |
-2.000 to 20.000 |
- |
| pH-resolution |
variable: 0.001 / 0.01 / 0.1 |
- |
| pH-relative accuracy |
+ 0.002 |
- |
| mV-range |
-2000 to 2000 |
- |
| mV-resolution |
variable: 0.1 / 1 |
- |
| mV-relative accuracy |
+ 0.1 |
- |
| Display |
7 inch color TFT display |
| Temperature range °C |
-30.0 to 130.0 |
| Temperature resolution °C |
0.1 |
| Temperature accuracy °C |
+ 0.1 |
| TDS range |
- |
0.001 mg/L ... 1000 g/L |
| Resistivity range |
- |
0.01 ... 100.0 MOhm*cm |
Mettler Toledo S600, S900 SevenCompact™
S600 SevenExcellence™ Dissolved Oxygen
The S600 SevenExcellence™ DO meter allows users to determine dissolved oxygen content in samples polarographically using any of METTLER TOLEDO's state-of-the art InLab® 605 polarographic dissolved oxygen sensors. This single channel instrument is modularly expandable with additional measurement parameters at any time!
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets.
- S600-Basic - SevenExcellence™ DO (Instrument with a DO expansion unit and 2 blank expansion units); can support both polarographic and digital DO sensors from METTLER TOLEDO
- S600-Kit - Kit version (as S600-Basic, including InLab® 605-ISM polarographic DO sensor, dissolved oxygen guide and zero-oxygen tablets for calibration)
S900 SevenExcellence™ Dissolved Oxygen/BOD
The S900 SevenExcellence DO meter allows users to determine dissolved oxygen content in samples using METTLER TOLEDO's new InLab® OptiOx digital dissolved oxygen sensors. Combined with the InLab® OptiOx, the S900 instrument is also able to allow the determination of biochemcial oxygen demand.
This single channel instrument is modularly expandable with additional measurement parameters at any time!
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets
- S900-Basic - SevenExcellence DO (Instrument with a DO expansion unit and 2 blank expansion units); can support both digital (RDO) and polarographic DO sensors from METTLER TOLEDO
- S900-Kit - Kit version (as S900-Basic, including InLab® OptiOx-ISM digital RDO sensor, dissolved oxygen guide and zero-oxygen tablets for calibration)
- S900-BOD - Kit version (as S900-Basic, including InLab® OptiOx-ISM digital RDO sensor, OptiOx BOD adapter, dissolved oxygen guide and zero-oxygen tablets for calibration)
| Model |
S600-Kit
30092985 |
S900-Basic
30092984 |
S900-Kit
30092986 |
S900-BOD
30092987 |
| Price |
$3,876.40
|
$3,031.60
|
$4,158.00
|
$4,250.40
|
| Short description |
Professional, yet intuitive instrument with touchscreen operation, which can easily handle the most complex applications and meets stringent requirements in regulated markets. |
Professional modular instrument for measurements of conductivity, salinity, TDS, resistivity and conductivity ash |
|
SevenExcellence™ DO (Instrument with a DO expansion unit and 2 blank expansion units); can support both polarographic and digital DO sensors from METTLER TOLEDO
Kit version (as S600-Basic, including InLab® 605-ISM polarographic DO sensor, dissolved oxygen guide and zero-oxygen tablets for calibration) |
SevenExcellence DO (Instrument with a DO expansion unit and 2 blank expansion units); can support both digital (RDO) and polarographic DO sensors from METTLER TOLEDO |
Kit version (as S900-Basic, including InLab® OptiOx-ISM digital RDO sensor, dissolved oxygen guide and zero-oxygen tablets for calibration) |
Kit version (as S900-Basic, including InLab® OptiOx-ISM digital RDO sensor, OptiOx BOD adapter, dissolved oxygen guide and zero-oxygen tablets for calibration) |
| Electrode Supplied |
InLab 605-ISM |
- |
InLab OptiOx |
InLab OptiOx plus BOD adaptor |
Dissolved Oxygen
Measuring range |
0.000…99 mg/L (ppm) |
0.000...50 mg/L (ppm) |
Dissolved Oxygen
Display Resolution |
0.001/0.01/0.1/1 |
Dissolved Oxygen
Accuracy |
+ 0.5% |
+ 0.1 mg/L from 0…8
+ 0.2 mg/L from 8…20
+ 10% from 20…50 |
Dissolved Oxygen
Units |
mg/L, ppm, % |
DO Saturation
Measuring range |
0.0…600% |
0.0...500% |
DO Saturation
Resolution |
0.1 |
Pressure
Measuring range |
500 to 1100 mbar |
Pressure
Resolution |
1 |
Pressure
Accuracy |
+ 0.2% |
| Display |
7 inch color TFT display |
| Calibration points |
2 |
| Sensor input |
BNC |
MiniLTW (IP67) |
| Pressure compensation |
automatic / manual |
| Pressure units |
mbar, hPa, mmHg, Atm |
|
