Intercomp PW800 Pallet Truck Scales Adam Equipment
Authorized Dealer
The PW800 is the preferred choice because it integrates its load cells within the existing forks. Other designs incorporate false forks thereby increasing the fork height, width, pallet truck weight and reducing accuracy. The PW800 uses load cells which are certified by the U.S. National Institute of Standards and Technologies to provide +/- 0.1% accuracy. The industry’s highest standard capacity at 5,000 x 1 lb and lowest profile forks at 2.9 inches guarantees you can accurately and safely lift any conventional pallet.
Intercomp PW800 Pallet Truck Scale Call Us
Made in USA

Specifications Chart

View Old Models

Weigh & Count Inventories with Economical Means to Transport Goods in Tight Spaces

The PW800™ is the preferred choice for Pallet Truck Scales because it integrates load cells within the existing forks. These load cells offer the industry’s highest standard capacity at 5,000 x 1lb (2,500 x 0.5kg), with an accuracy of ±0.1%, combined with the lowest profile forks at 2.9” (74mm).

The scale runs on nine D-Sized Alkaline or NiCad rechargeable batteries for up to 75 hours. The 0.8” (20mm) LED display and membrane keypad provide increased visibility and functions for gross/net/tare and parts counting. All electronics are shock mounted and contained in a rugged and durable enclosure.

  • 5,000lb (2,500kg) Capacity
  • Accuracy of ±0.1% of Reading
  • Large, Easy-to-Read, 0.8" LED Display
  • Lowest Profile Forks at 2.9" (73mm) & 48" (1,219mm) Overall Stance
  • Commercially Available D-Cell Batteries Last up to 75 Hours (Not Included)
  • Made in the U.S.A.
  • Can be Interfaced with Customer-Supplied Indicator*
  • FM Approved Load Cells
Intercomp PW800 Pallet Truck Scales




Intercomp Battery operated tape printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE, add $715.50

Intercomp RS232C Serial data output - Required to work with printer for PW800 MUST BE ORDERED AT TIME OF SCALE PURCHASE, add $175.50

Intercomp Part 123007 Steel Wheels - Two front rollers and rear wheel, add $625.50

Intercomp Part 330111 Battery Pack, qty. 1x3 D-Size - NiCad, add $81.00

Intercomp Part 330111-PW Battery Pack, qty. 1x3 D-Size - NiCad, add $243.00

Intercomp Part 100857 Charger, External, 120/220 V, for qty. 3X3 D-Size NiCad/NiMH, add $400.50

Intercomp 750501 CERTIFICATE OF CALIBRATION (MUST BE ORDERED WITH SCALE), add $75.00


Easy-to-Use, push-button indicator offers Zero, Tare, Net/Gross, Unit (lb/kg Conversion), Total Weight, Peak Hold & Set Points at the touch of a button!

Model 123000
PW800
PW800   5000 x 1 lb
$2,785.50
buy now
Capacity 5,000 x 1 lb
Accuracy ±0.1% of Reading
Display Large, Easy-to-Read, 0.8" LED Display
Power Commercially Available D-Cell Batteries Last up to 75 Hours (Not Included)





Old Intercomp PW800 Pallet Truck Scales

Virtually any production environment relies upon pallet trucks as an economical means of transporting goods in and around tight locations. Now let Intercomp provide you with another cost effective weigh on the go solution – the PW800 Pallet Truck Scale. As the world’s largest manufacturer of pallet truck scales, we offer the widest range of sizes and accessories for weighing and counting almost all types and sizes of pallets. Intrinsically safe units are available for explosive environments.

The PW800 is the preferred choice because it integrates its load cells within the existing forks. Other designs incorporate false forks thereby increasing the fork height, width, pallet truck weight and reducing accuracy. The PW800 uses load cells which are certified by the U.S. National Institute of Standards and Technologies to provide +/- 0.1% accuracy. The industry’s highest standard capacity at 5,000 x 1 lb and lowest profile forks at 2.9 inches guarantees you can accurately and safely lift any conventional pallet.

The unit maximizes run time by providing up to fifty hours of continuous use via D size commercially available rechargeable or alkaline batteries for easy and low cost replacement. Weights are clearly seen on a 0.8 inch high LED display while the membrane keypad provides functions for gross/net/tare as well as parts counting. All electronics are shock mounted and contained in a rugged durable enclosure. Standard fork sizes are 27 x 48 and 21 x 48 inches/ 685 x 1219 and 533 x 1219 mm.

  • Lowest profile forks 2.9 inches/73 mm
  • Fast, low-cost parts counting & totalization for taking inventory
  • Accuracy of +- 0.1% which is better than most fork lift scales
  • 5,000 lb/2,500 kg capacity in 1 lb/0.5 kg increments
  • Low-cost operation (9) D-cell batteries with up to 40 hour battery life
  • Quick verification of incoming/outgoing freight
  • Instant check of truck loading by weight
  • Multi-purpose mobile weighing
  • Large, easy-to-read 0.8 inch/ 20 mm LED display
  • Electric walkie retrofits
Model Image Description Capacity/Graduation Indicator Price Price with USB Wireless Node Weight Accessories
123000 Intercomp 123000 PW800 Pallet Truck Scales Fork Size 27x48x2.9" 5000 x 1 lb YES $2696.00
$3146.00
300 lb View
113000 Intercomp 113000 PW800 Pallet Truck Scales Fork Size 21x48x2.9" 5000 x 1 lb YES $2696.00
$3146.00
300 lb View
122999 Intercomp 122999 PW800 Pallet Truck Scales Fork Size 27x48x2.9" without indicator 5000 x 1 lb NO $2696.00
- 300 lb View
122998 Intercomp 122998 PW800 Pallet Truck Scales Fork Size 21x48x2.9" without indicator 5000 x 1 lb NO $2696.00
- 300 lb View
GENERAL
Capacity: 5,000, 2,500 or 1,000 lb/2,500, 1,250 or 500 kg
Graduation: 1, 0.5 or 0.2 lb/0.5, 0.2 or 0.1 kg
Accuracy: ± 0.1 of reading
ELECTRICAL
Battery Life: Up to 40 hours of continuous use
Batteries: (9) D-size disposable alkaline dry cells or rechargeable nickel-cadmium cells (not included)
Charge Time: 16 hours
Charge: Charger/Power transformer 110/220 VAC
Low Battery Shut-Off: Unit automatically shuts off if batteries are low
Auto Shut-Off: Shuts off after 5 minutes of non-use (variable)
Display: 0.8 inch/20 mm High – 5-1/2 digit (LED)
Indicators: lb, kg, Pieces, Gross, Net, Total & Peak Control Switches: On/Off, Zero, Net/Gross, Mode, Tare, Units/Pieces, Total, Scale Select, Preset Tare, Sample, APW, Peak Hold, Over, Under, I.D. #, Set Point 1/2, Print, Enter, Clear, 10 Key Numeric Keypad
Load Cells: NTEP approved 5,000 divisions
Indicator: NTEP approved 10,000 divisions
Features:
  • Tare – Up to 100% capacity
  • Zero – Up to 100% of capacity
  • Units – lb/kg
  • Push button print of Gross
  • Net Tare
  • Total & Count
  • Displays Gross
  • Net & Tare Weight
  • Weight totalization up to 100,000 lbs
  • Parts counting
  • Count totalizations up to 100,000 counts
  • Adjustable baud rates from 75 to 9600
  • Selectable AZT off, 0.6, 1 or 3 graduations
  • Adjustable display update/weight averaging
ENVIRONMENTAL Humidity: 10 to 85% non-condensing
Operating -4°F to 140° F/-20°C to 60°C
PHYSICAL Standard Fork

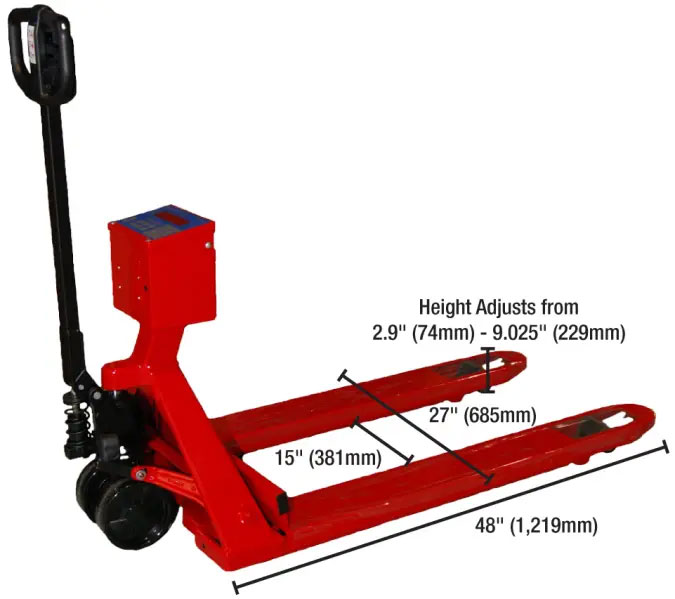

Dimensions: 48L x 27W x 2.9H inches/1,219 x 685 x 74 mm or, 48L x 21W x 2.9H inches/1,219 x 533 x 74 mm
Weight: 275 lb/125 kg
Options:
  • RS232 & RS485 Output
  • Tape Printer
  • LCD Display
  • Galvanized or Stainless Steel
  • Forks Available in Different Lengths & Widths
  • Explosion Proof
  • External Battery Charger
  • Drum Brake
  • Brass Wheels
