Imada Digital Ratchet Torque Wrench
Authorized Dealer
Digital Ratchet Torque Wrenches have a forged steel ratchet head and feature a unique power sensor in the ergonomic handle which accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position, unlike other loading point sensitive wrenches.

Specifications Chart

Digital Ratchet Torque Wrenches have a forged steel ratchet head and feature a unique power sensor in the ergonomic handle which accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position, unlike other loading point sensitive wrenches.
Imada Digital Ratchet Torque Wrench




  • High accuracy ±1.5% F.S. both CW and CCW directions
  • The best known, rugged, high quality tools for over 60 years!
  • Peak, peak with auto zero reset and Real Time modes
  • Five programmable torque presets ideal for frequent operations.
  • Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
  • Selectable units, lbf-in, lbf-ft, kgf-cm, N-m
  • ISO-6789 Compliant
  • Calibration certificate traceable to NIST and carrying case included
Forged Steel Ratchet Head
Forged Steel Ratchet Head
The 36 tooth gear and double claw ratchet allows a 10° angle and solid movement between clicks

Rigid Ergonomic Grip with Unique Power Sensor - keeps the load point in the center of your hand. The built-in sensor accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position and skill level of the operator.

Large LED Lamp - is easily visible even from the side

Digital Ratchet Torque Wrenches have a forged steel ratchet head and feature a unique power sensor in the ergonomic handle which accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position, unlike other loading point sensitive wrenches.

These torque wrenches measure in peak mode, peak with auto zero reset, and real time. Five programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an intermittent signal at 90% and a continuous signal at 100% of the preset torque value using LED?and audible indicators that enable users to tighten to within 10% of a preset torque value. Pass/Fail mode counts the number of fasteners tightened within programmed high and low torque limits. Selectable units of lbf-in, lbf-ft, kgf-m, and N-m. Uses a lithium coin battery, CR2354.

Specifications:

  • Accuracy - ±1.5% F.S.
  • Measuring direction - CW and CCW
  • Measuring unit - Selectable lbf-in, lbf-ft, kgf-m, N-m
  • Data Memory - 5 (storable Target torque values), 1 (Pass/Fail Mode)
  • Auto Shut OFF - Power automatically turns off after 2 minutes of non-use
  • Battery - Lithium coin battery CR2354
  • Battery Life - Approx. 2 months (100 usages per day)
  • Models GEK030-R2E GEK030-C3E GEK060-R3E GEK085-R3E GEK135-R4E GEK200-R4E
    GEK200-R4E - 46~1770 lbf-
    $485.00
    buy now
    GEK200-R4E - 46~1770 lbf-
    $485.00
    buy now
    GEK200-R4E - 46~1770 lbf-
    $485.00
    buy now
    GEK200-R4E - 46~1770 lbf-
    $485.00
    buy now
    GEK200-R4E - 46~1770 lbf-
    $525.00
    buy now
    GEK200-R4E - 46~1770 lbf-
    $625.00
    buy now
    Capacity x Readability 13.4~265.4 lbf-in 13.4~265.4 lbf-in 13.5~531.0 lbf-in 19.0~752.0 lbf-in 28~1195 lbf-in 46~1770 lbf-in
    1.12~22.12 lbf-ft 1.12~22.12 lbf-ft 1.15~44.25 lbf-ft 1.60~62.70 lbf-ft 2.3~99.5g lbf-ft 3.8~147.4 lbf-ft
    0.160~3.060 kgf-m 0.160~3.060 kgf-m 0.160~6.120 kgf-m 0.21~8.66 kgf-m 0.32~13.76 kgf-m 0.55~20.40 kgf-m
    1.50~30.00 N-m 1.50~30.00 N-m 1.50~60.00 N-m 2.0~85.0 N-m 3.1~135.0 N-m 5.2~200.0 N-m
    Drive 1/4" 3/8" 3/8" 3/8" 1/2" 1/2"
    Accuracy ±1.5% F.S.
    Measuring direction CW and CCW
    Measuring unit Selectable lbf-in, lbf-ft, kgf-m, N-m
    Data Memory 5 (storable Target torque values), 1 (Pass/Fail Mode)
    Auto Shut OFF Power automatically turns off after 2 minutes of non-use
    Battery Lithium coin battery CR2354
    Battery Life Approx. 2 months (100 usages per day)
    Models GEK030-R2E GEK030-C3E GEK060-R3E GEK085-R3E GEK135-R4E GEK200-R4E

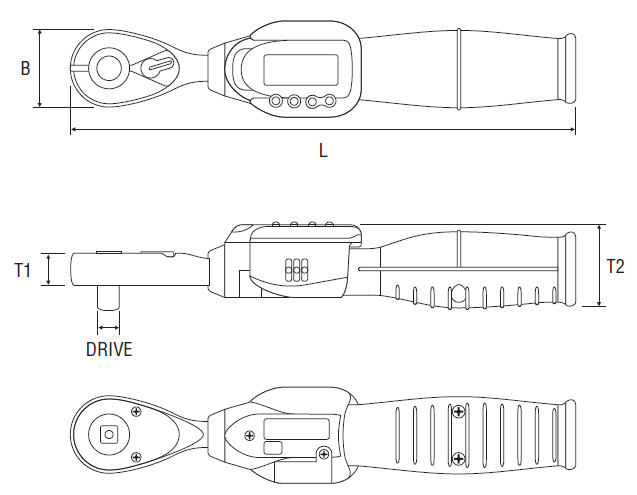

    B 0.86" 0.86" 1.29" 1.29" 1.55" 1.55"
    L 8.30" 8.30" 8.54" 10.96" 14.96" 22.83"
    T1 0.39" 0.39" 0.53" 0.53" 0.70" 0.70"
    T2 1.41" 1.41" 1.41" 1.41" 1.41" 1.41"
    Drive 1/4" 3/8" 3/8" 3/8" 1/2" 1/2"
