Imada Digital Adjustable Torque Wrench
Authorized Dealer
Digital Adjustable Torque Wrenches expand torque applications to places where a socket wrench cannot work. They feature forged steel jaws and a unique power sensor in the handle which accurately detects and analyzes load applied to the grip, regardless of hand position and specially designed jaws that maintain a constant working length whether open or closed, to enable more precise torque measurement.

GEK085-W36E

GEK135-W36E

GEK200-W36E

Specifications Chart

Imada Digital Adjustable Torque Wrench




Digital Adjustable Torque Wrenches expand torque applications to places where a socket wrench cannot work. They feature forged steel jaws and a unique power sensor in the handle which accurately detects and analyzes load applied to the grip, regardless of hand position and specially designed jaws that maintain a constant working length whether open or closed, to enable more precise torque measurement.
  • High accuracy ±1.5% F.S. (clockwise with display facing you, counterclockwise with display facing away from you)
  • The best known, rugged, high quality tools for over 60 years!
  • Peak, peak with auto zero reset and Real Time modes
  • Five programmable torque presets ideal for frequent operations.
  • Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
  • Selectable units, lbf-in, lbf-ft, kgf-cm, N-m
  • ISO-6789 Compliant
  • Calibration cert traceable to NIST and carrying case included

Rigid Ergonomic Grip with Unique Power Sensor - keeps the load point in the center of your hand. The built-in sensor accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position and skill level of the operator.

Large LED Lamp - is easily visible even from the side.

Digital Adjustable Torque Wrenches expand torque applications to places where a socket wrench cannot work. They feature forged steel jaws and a unique power sensor in the handle which accurately detects and analyzes load applied to the grip, regardless of hand position and specially designed jaws that maintain a constant working length whether open or closed, to enable more precise torque measurement.

These torque wrenches measure in peak mode, peak with auto zero reset, and real time. Five programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an intermittent signal at 90% and a continuous signal at 100% of the preset torque value using LED?and audible indicators that enable users to tighten to within 10% of a preset torque value. Pass/Fail mode counts the number of fasteners tightened within programmed high and low torque limits. Selectable units of lbf-in, lbf-ft, kgf-m, and N-m. Uses a lithium coin battery, CR2354.

Specifications:

  • Accuracy - ±1.5% F.S.
  • Measuring direction - CW with display facing you, CCW with display facing away from you
  • Measuring unit - Selectable lbf-in, lbf-ft, kgf-m, N-m
  • Data Memory - 5 (storable Target torque values), 1 (Pass/Fail Mode)
  • Auto Shut OFF - Power automatically turns off after 2 minutes of non-use
  • Battery - Lithium coin battery CR2354
  • Battery Life - Approx. 2 months (100 usages per day)
Models GEK085-W36E GEK135-W36E GEK200-W36E
GEK200-W36E  - 146~1770 lbf-in
$645.00
buy now
GEK200-W36E  - 146~1770 lbf-in
$670.00
buy now
GEK200-W36E  - 146~1770 lbf-in
$785.00
buy now
Capacity x Readability 19.0~752.0 lbf-in 28~1195 lbf-in 46~1770 lbf-in
1.60~62.70 lbf-ft 2.3~99.5 lbf-ft 3.8~147.4 lbf-ft
0.21~8.66 kgf-m 0.32~13.76 kgf-m 0.55~20.40 kgf-m
2.0~85.0 N-m 3.1~135.0 N-m 5.2~200.0 N-m
Accuracy ±1.5% F.S.
Measuring direction CW with display facing you, CCW with display facing away from you
Measuring unit Selectable lbf-in, lbf-ft, kgf-m, N-m
Data Memory 5 (storable Target torque values), 1 (Pass/Fail Mode)
Auto Shut OFF Power automatically turns off after 2 minutes of non-use
Battery Lithium coin battery CR2354
Battery Life Approx. 2 months (100 usages per day)

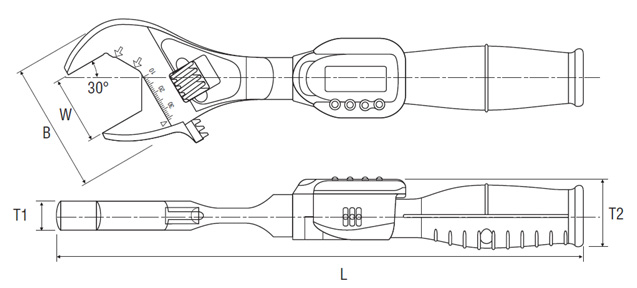

Models GEK085-W36E GEK135-W36E GGEK200-W36E
B 2.71" 2.71" 2.71"
L 10.83" 15.00" 22.88"
T1 0.57" 0.57" 0.57"
T2 1.41" 1.41" 1.41"
