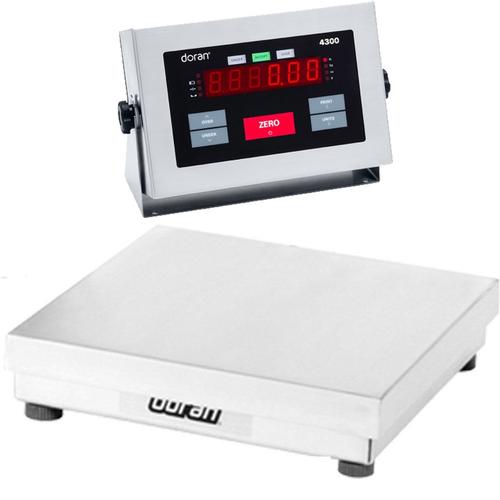

Doran 4300 Legal For Trade Checkweighing Scale Adam Equipment
Authorized Dealer
The Doran Model 4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership.

View Specifications Chart

The Doran Model 4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. Here’s why


Legal for Trade

Washdown Safe - 304 Stainless Steel construction, and the exclusive, innovative Doran Gasket design meets and exceeds IP69K and NEMA 4X classification for washdown protection. The 4300 Checkweigh Scale will survive and thrive in the most extreme washdown weighing applications

1000% Overload Protection - With the unique “Quad Spring©” base design, Doran Scales has virtually eliminated the most common load cell damage caused by shock and overload damage. Protected to up to 10 times capacity, the 4300 Checkweigh Scale sets the new industry standard - A Doran Exclusive!

Indestructible “Guardian” Touch Panel - Reduced down time and lower maintenance costs even in repeated harsh washdown environments. Four times thicker than the competition, this super rugged touch panel resists moisture and puncture damage better than any other scale.

Easy Operation - Simple to use with minimal operator training. Set Over/Under tolerances right from the front panel using the Up/Down arrow buttons. Checkweigh to zero or actual weight with 3 or 5 zone checkweighing operations.

Powerful New Excel Design

  • Communications Interface
    • Programmable, Bi-directional RS-232 interface
    • Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output, all Field Installable Options.
  • Optional Setpoints
    • Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
  • Advanced Features
    • Grading Scale and Peak & Hold - Standard
    • Internal Rechargeable Battery Option
    • Dimension setup and optional Excelerator data collection Windows software.

Doran 4300
Legal for Trade Checkweighing Scale

Price From: $1201.50



Options Must be added with scale

(Some Factory Installed)

Column & Brackets

Doran EXOPT125 Option E Bracket , add $76.50

Doran EXOPT161 14 Inch Stainless Steel Atlas Column, add $144.00
Communications & Data Output

Doran EXOPT205 Bluetooth Internal Transmitter & USB Receiver, add $198.00

Doran EXOPT202 Bluetooth Internal Transmitter, add $112.50

Doran EXOPT204 Bluetooth USB Receiver, add $85.50

Doran EXOPT101 Ethernet Wired, add $355.50

Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit, add $58.50

Doran EXOPT102 Wireless Ethernet 802.11b, add $445.50

Doran EXOPT160 USB Interface, add $175.50

Doran EXOPT162 Waterproof USB Cable IP67 6 feet Long, add $76.50

Doran EXOPT163 Waterproof USB Cable IP67 16 feet Long, add $81.00

Doran EXOPT164 USB Adapter Type B Female to Type A Male, add $25.00

Doran EXOPT100 4-20mA Analog Output Passive or Active , add $189.00

Doran EXOPT186 Modbus/TCP, add $382.50

Doran EXOPT150M Washdown Safe RJ45 ModbusTCP Connector Field Install Kit, add $58.50

Doran EXOPT103 Fiber Optic Interface, add $315.00

Doran EXOPT104 Digital Output Board, add $112.50
Remote Display

Doran EXPOT114 Remote Display Option, add $175.50
Internal Audible Alarm

Doran EXOPT151 Internal Audible Alarm Option Accept - Chime, add $112.50

Doran EXOPT152 Internal Audible Alarm Option Over - Continous, add $112.50

Doran EXOPT153 Internal Audible Alarm Option Under - Warble, add $112.50
External Audible Alarm

Doran EXOPT157 External Audible Alarm Option Accept - Chime, add $157.50

Doran EXOPT158 External Audible Alarm Option Over - Continous, add $157.50

Doran EXOPT159 External Audible Alarm Option Under - Warble, add $157.50
Remote Switch

Doran EXOPT115 Remote Switch Configured for remote ZERO, add $90.00

Doran EXOPT116 Remote Switch Configured for remote PRINT, add $90.00

Doran EXOPT117 Remote Switch Configured for remote UNITS, add $90.00

Doran EXOPT165 Remote Switch Washdown Configured for remote ZERO, add $171.00

Doran EXOPT166 Remote Switch Washdown Configured for remote PRINT, add $171.00

Doran EXOPT167 Remote Switch Washdown Configured for remote UNITS, add $171.00

Printer

Doran LR350 Label Printer (PRT0350-C), add $540.00
Power Options

Doran EXOPT124 230 VAC Operation for scales with an Internal Battery, add $95.00

Doran EXOPT147 6-24VDC Power, add $180.00
Relay Options - Internal

Doran EXPOT106 Internal Relay Option , add $255.00

Doran EXPOT195 Mechanical Relay for EXOPT106 Internal Relay , add $49.50

Doran EXPOT109 Solid State Relay AC for EXOPT106 Internal Relay , add $49.50

Doran EXPOT110 Solid State Relay DC for EXOPT106 Internal Relay , add $49.50
Relay Options - External

Doran EXPOT107 External Relay Option , add $337.50

Doran EXPOT196 Mechanical Relay for EXOPT107 External Relay , add $45.00

Doran EXPOT112 Solid State Relay AC for EXOPT107 External Relay , add $58.50

Doran EXPOT113 Solid State Relay DC for EXOPT107 External Relay , add $58.50
Model 4302/88* 4305/88 4310/88 4325/88 4302* 4305 4310 4325 4350 4350/12 43100/12 4350/15 43100/15 43200/15
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,201.50
buy now
43200/15
$1,291.50
buy now
43200/15
$1,219.75
buy now
43200/15
$1,552.50
buy now
43200/15
$1,552.50
buy now
43200/15
$1,552.50
buy now
Capacity x Readability lb 2 x 0.0005 5 x 0.001 10 x 0.002 25 x 0.005 2 x 0.0005 5 x 0.001 10 x 0.002 25 x 0.005 50 x 0.01 50 x 0.01 100 x 0.02 50 x 0.01 100 x 0.02 200 x 0.05
kg 0.9 x 0.2g 2.3 x 0.5g 4.5 x 1g 11.3 x 2g 0.9 x 0.2g 2.3 x 0.5g 4.5 x 1g 11.3 x 2g 22.7 x 5g 22.7 x 5g 45 x 10g 22.7 x 5g 45 x 10g 91 x 20g
oz 35 x 0.01 80 x 0.02 160 x 0.05 400 x 0.1 35 x 0.01 80 x 0.02 160 x 0.05 400 x 0.1 800 x 0.2 800 x 0.2 1600 x 0.5 800 x 0.2 1600 x 0.5 3200 x 1
Platter Size 8" x 8" 10" x 10" 12" x 12" 15" x 15"
Legal for Trade NOT
Legal for Trade
Indicator: CC# 97-038A1 NTEP Class III - Base: CC# 97-097A1 NTEP Class III
NOT
Legal for Trade
Indicator: CC# AM-5201 Canada Class III - Base: CC# AM-5241 Canada Class III
NTEP Resolution NOT
Legal for Trade
5000d 5000d 5000d NOT
Legal for Trade
5000d 5000d 5000d 5000d 5000d 5000d 5000d 5000d 5000d
Outputs
  • Bi-directional RS-232 Serial Port.
  • Eight Digital Outputs
Column 14 inch - Optional
Washdown NEMA4 x
Display 6 Digit, red LED, 0.56" High
Controls: ZERO, UNITS, PRINT, OVER, and UNDER
Indicators lb, kg, g, oz, ZERO, MOT, NEG, OVER, UNDER, and ACCEPT
Units lb, kg, g, oz, or lb:oz
Power 115 VAC (230 VAC Optional);EMI/ESD protected Internal Rechargeable Battery (Optional
Construction 304 Stainless Steel
Warranty Two Year Parts & Labor
* Not Legal for Trade
