Chatillon K-DFE Functional Evaluations Medical Kit

  Chatillon K-DFE Functional Evaluations Medical Kit

View Specifications Chart

The CHATILLON® K-DFE Series is ideal for functional capacity evaluations and job task analysis. This compact, easy-to-use force gauge has a measurement accuracy of better than 0.25% full scale. A large, easy-to-read, high resolution dot matrix LCD display supports a variety of measurements including functional capacity (Load Averaging) based on a force or a time duration. The gauge also displays normal and peak readings, pass/fail results and statistics based on up to 10 stored results. Measurements are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” during testing. The K-DFE gauge comes standard with carrying case, battery adapter/charger and NIST Certificate of Calibration with data. A variety of testing fixtures are supplied standard. The K-DFE gauge has a standard RS232 digital output for exporting data to a personal computer using our TCD WEDGE application software.

Features
  • Advanced Operating Modes
    • - Functional Capacity (Load Averaging)
    • - Force-Based
    • - Time Duration-Based
    • - Normal
    • - Peak Strength
    • - Average Strength
    • - Strength Limits
    • - Pass-Fail Limits
  • Statistical Calculations
    • - Mean with Maximum and Minimum Values
    • - Coefficient of Variation with Mean and Standard Deviation
    • - Standard Deviation with Variance and Mean
    • - % Differentiation
  • Integral Loadcells
    • - Accuracy +0.25% Full Scale
    • - Mechanical Overload Protection to 150% Full Scale
  • Simple Operator Interface
    • - High Resolution Dot-Matrix
    • - Menus with Prompts for Easy Use
    • - Dedicated and Function Keys with Navigation Pod
  • NIST Calibration with Data
    • - Available IEC/ISO17025 Cert with Uncertainty
  • 2 Year Warranty

Notice
The K-DFE digital force gauge is a general purpose force measurement instrument. It is not intended for applications requiring Class 2 designation by the United States Food & Drug Administration or by Health Canada

Chatillon K-DFE Functional Evaluations Medical Kit

Chatillon NC002845 Soft Carrying Case, Fanny Pack
Chatillon NC002845 Soft Carrying Case, Fanny Pack, add $61.75
Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F, add $25.00
Chatillon SPK-FMG-011B Flat Adapter 500 lbf 5/16-18F
Chatillon SPK-FMG-011B Flat Adapter 500 lbf 5/16-18F, add $26.00
Chatillon SPK-FMG-012C Hook, Stationary -  500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-012C Hook, Stationary - 500 lbf, 2.5 kN 5/16-18F, add $26.00
Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F, add $26.00
Chatillon SPK-FMG-009B Point Adapter  500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-009B Point Adapter 500 lbf, 2.5 kN 5/16-18F, add $26.00

Model K-DFE-100 K-DFE-200 K-DFE-500
Price K-DFE-100 $1,495.00
buy now
K-DFE-200 $1,495.00
buy now
K-DFE-500 $1,495.00
buy now
Capacities lbf 100 x 0.1 lbf 200 x 0.1 lbf 500 x 0.1 lbf
Capacities kgf 50 x 0.01 kgf 100 x 0.1 kgf 250 x 0.1 kgf
Capacities N 500 x 0.1 N 1000 x 1 N 2500 x 1 N
Accuracy +0.25% of full scale
Certification Calibration with NIST Data, IEC/ISO17025 optional
Data Sampling Rate 5000 Hz
Peak Capture Rate 5000 Hz
Display Update Rate: 8 Hz
Tare Capacity 10% full scale
Overload Protection 150% full scale
Display Characteristics High resolution, dot-matrix LCD, 8 lines, 40 characters, adjustable contrast, invert and “hide” capability
Automatic Shut Down Configurable time. May be disabled
Data Storage 10 results
Outputs RS-232, Mitutoyo (Digimatic) and +2Vdc analog
Power Battery or direct AC operation. Universal Power 110V/230V, Rechargeable Nickel Metal Hydride (supplied), International Universal AC Adapter
Battery Life Approximately 30 hours, continuous use
Instrument Weight 1.5 lbs (0.7 kg)
Operating Temperature 40o to 100oF (4o to 38oC)
Warranty 2 year

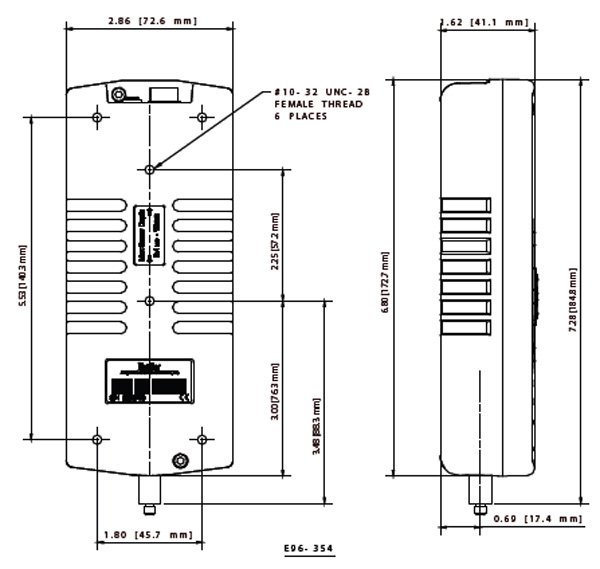

Dimensions

Dimensions

Notice - The K-DFE digital force gauge is a general purpose force measurement instrument. It is not intended for applications requiring Class 2 designation by the United States Food & Drug Administration or by Health Canada.

K-DFE Series Included Accessories

Part No. Description Capacity Thread
NC002500 Hook, with Snap Latch 500 lbf, 2.5 kN 5/16-18F
NC000725 V-Notch Fixture, Large 500 lbf, 2.5 kN 5/16-18F
NC000721 V-Notch Fixture, Small 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-013B Extension Rod, 13-inch 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-142 Curved Compression Fixture 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-143 Compression Plate, Circular 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-144 Palm Fixture 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-145 Compression Plate, Rectangular, Large 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-146 Compression Plate, Rectangular, Small 500 lbf, 2.5 kN 5/16-18F
NC002844 Grasping Loop 500 lbf, 2.5 kN 5/16-18F
NC000857 Knurled Nut 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-141 Pistol Grip 500 lbf, 2.5 kN 5/16-18F
SPK-DF-HANDLE Handle Assembly 500 lbf, 2.5 kN 5/16-18F
SPK-FMG-015 Hex Key - -
NC002860 Battery Charger Adapter - -
SPK-FMG-149 Carrying Case - -
