Cambridge MODEL 670-1 Barrel Scales with Built In Single Ramp |
![Authorized Cambridge Scale Dealer Cambridge Scales](../global/images/man/man_476.jpg)
Authorized Dealer |
Constructed of structural tubular steel and heavy gauge anti-skid diamond plate decking these scales are designed to handle the toughest applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty.
|
Cambridge Scales >> Floor Scales > Drum Scales |
Base Only Indicator Sold Separately |
|
Specifications Chart
Have Questions? Our Staff will be glad to help |
|
Cambridge Model 670-1 Series Barrel Weigher Scale
Constructed of structural tubular steel and heavy gauge anti-skid diamond plate decking these scales are designed to handle the toughest applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty.
STANDARD FEATURES
- Structural tubular steel construction.
- Anti-skid diamond plate deck.
- 100% End loading capacity.
- 150% Overload protection.
- 20 Foot indicator cable.
- Eye bolt holes allow easy set-up.
- Shielded load cell and indicator cables.
- Ultra-low profile (1.5" above the floor).
- Live side rails to weigh oversized loads.
- 1 Part in 5000 accuracy.
- Live built-in easy incline ramps.
- Shock load protection.
- (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division, Class III/IIIL, IP 67 water resistant rated shear beam load cells.
- Easy access leveling.
OPTIONS
- Smooth carbon steel deck plate.
- Remote NEMA 4x junction box with 10 Sealtite flexible conduit (available in stainless steel, plastic and FM approved).
- Load cell options: Stainless steel , Hermetically sealed S.S. , Teflon cables,FM approved
- High Resolution Package Includes: Captive ball leveling feet for unmatched stability.
- H.E.P. Package Includes: Stainless steel NEMA 4x J -box, Capped and sealed tubes, Stainless steel load cells, leveling feet and hardware, Sandblasted surface Cold zinc epoxy coating with urethane enamel finish coat
|
|
Other Options - Please call (800) 832-0055 for more info
Remote Stainless Steel "J" Box |
Remote S.S. NEMA IV Junction Box with 10 F.T. Sealtite flexible condut with two straight connectors |
Cambridge Model 670-1 Series Barrel Weigher Scale |
Model |
670130301 |
670130302 |
670130305 |
670136361 |
670136362 |
670136365 |
![Cambridge 670130301 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-100 Cambridge 670130301 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-1001-00) 1000 x 0.2 lb](../global/images/product_2/412/41204_500X500.jpg)
$1,705.50
|
![Cambridge 670130302 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-10 Cambridge 670130302 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-1002-00) 2500 x 0.5 lb](../global/images/product_2/412/41205_500X500.jpg)
$1,705.50
|
![Cambridge 670130305 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-10 Cambridge 670130305 Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp (3882-1003-00) 5000 x 1 lb](../global/images/product_2/412/41206_500X500.jpg)
$1,759.50
|
![Cambridge 670136361 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-100 Cambridge 670136361 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-1004-00) 1000 x 0.2 lb](../global/images/product_2/412/41207_500X500.jpg)
$1,759.50
|
![Cambridge 670136362 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-10 Cambridge 670136362 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-1005-00) 2500 x 0.5 lb](../global/images/product_2/412/41208_500X500.jpg)
$1,795.50
|
![Cambridge 670136365 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-10 Cambridge 670136365 Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp (3882-1006-00) 5000 x 1 lb](../global/images/product_2/412/41209_500X500.jpg)
$1,903.50
|
Capacity |
1,000 x 0.2 lb |
2,500 x 0.5 lb |
5,000 x 1 lb |
1,000 x 0.2 lb |
2,500 x 0.5 lb |
5,000 x 1 lb |
Platform Size |
30" x 30" x 1.5" |
30" x 30" x 1.5" |
30" x 30 x 1.5" |
36" x 36" x 1.5" |
36" x 36" x 1.5" |
36" x 36" x 1.5" |
Model With Indicator |
670130301K |
670130302K |
670130305K |
670136361K |
670136362K |
670136365K |
Selected ![Cambridge 670130301K Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Ind Cambridge 670130301K Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 1000 x 0.2 lb](../global/images/product_2/412/41216_500X500.jpg)
$2,029.50
|
![Cambridge 670130302K Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indi Cambridge 670130302K Model 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 2500 x 0.5 lb](../global/images/product_2/412/41217_500X500.jpg)
$2,029.50
|
![Cambridge 670130305KModel 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indic Cambridge 670130305KModel 670-1 30in x 30in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 5000 x 1 lb](../global/images/product_2/412/41218_500X500.jpg)
$2,083.50
|

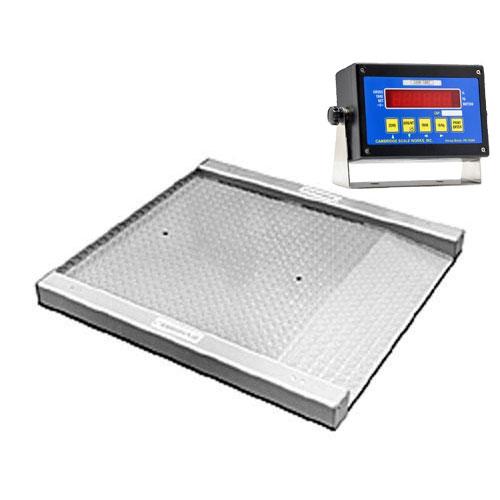

![Cambridge 670136361K Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indi Cambridge 670136361K Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 1000 x 0.2 lb](../global/images/product_2/412/41220_500X500.jpg)
$2,083.50
|
![Cambridge 670136362K Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indi Cambridge 670136362K Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 2500 x 0.5 lb](../global/images/product_2/412/41221_500X500.jpg)
$2,119.50
|
![Cambridge 670136365K Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indi Cambridge 670136365K Model 670-1 36in x 36in x 1.5in Barrel Scale with Built In Single Ramp and Indicator 5000 x 1 lb](../global/images/product_2/412/41222_500X500.jpg)
$2,227.50
|
Overload protection |
150% |
Indicator Cable |
20 Foot |
Rated |
IP 67 water resistant |
Plate Deck |
Anti-skid diamond |
Accuracy |
1 Part in 5000 |
|
|
